Hot Air Generators
Hot Air Generators
Hot Air Generators, Fully Automatic Hot Air Generators, India.
Salient Features :
- ❱ They are Fully automatic.
- ❱ Their operations are easy, User Friendly , system is fail proof.
- ❱ Packaged models.
- ❱ Compact in design.
- ❱ Caters to hot air requirements of any drier.
- ❱ Record efficiency.
- ❱ Economically cheapest clean hot air available instantly.
- ❱ Low motive power required.
- ❱ Replaces electricity, Steam, thermic fluid , media to generate hot air.
- ❱ Drying Time & drying cost considerably reduced.

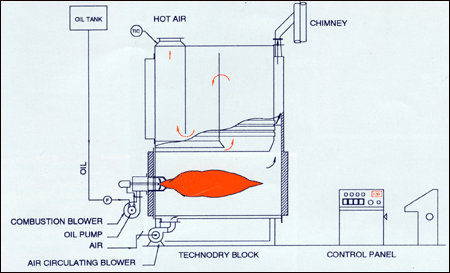

NEOTECH's oil fired hot air generator model technology blocks comprise of an advanced shell in shell type radiant heat transfer section connected to a multiple pass shell & tube type convective heat exchanger.
These air heaters are available in two types.

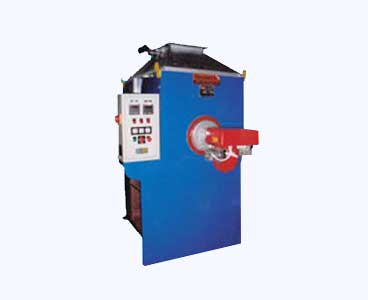

Internal Recirculation Type :
Ideally suited to
- a) Totally new venture.
- b) Bulk production of a single product

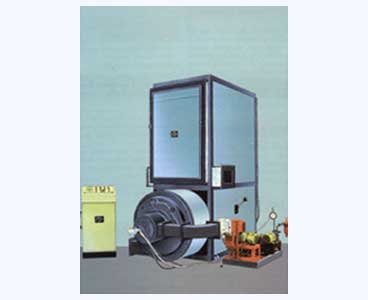

External Recirculation Type :
Ideally suited to
- a) Existing industries, which already have number of tray driers working.
- b) Working industries having multiple product range for drying.
Technodry block is fully automatic in operation. It is designed & constructed for easy operation. By mere turn of a switch the unit can be put into operation. It is having efficient pressure jet combustion system, liberal heat transfer area accounted in design & insulated heat transferring equipments ensure high fuel efficiency of 84 ± 2%
Technical Specifications :
| Internal Recirculation Type TECHNODRY BLOCK Model | ||||
| Details | Unit | TDB-35 | TDB-50 | TDB-100 |
| OPERATING PARAMETERS | ||||
| Rating | K.Cals/hr. | 35000 | 50000 | 100000 |
| Max. Outlet Temp. | 0C | 140 | 140 | 140 |
| Air Output | m3/hr. | 2800 | 4000 | 8000 |
| Type of Fuel | LIGHT FUELS LIKE LDO/HSD/KEROSENE | |||
| Fuel Oil Consumption | kgs/hr | 4.1 | 5.80 | 11.5 |
| Burner Control | ON/OFF | |||
| Capacity in terms of Trolleys | Nos. | 4 | 6 | 10 |
| Efficiency | % | 84 ± 2% | ||
| Electric Supply | A.C.3
PHASE : 415V ± 6% 50 HZ 4 WIRE |
|||
| Connected Electrical Load | H.P. | |||
| Air Circulating Blower | 3.0 | 5.0 | 7.5 | |
| Combn. Blower | 1.0 | 1.0 | 1.5 | |
| Oil Pump | 0.5 | 0.5 | 0.5 | |
| Total Electric Load | 4.5 | 6.5 | 9.5 | |
| Flue Gas Outlet | mm. | 150 | 150 | 200 |
| External Recirculation Type TECHNODRY BLOCK Model | ||||||||
| Details | Unit | TDB - 30 | TDB - 60 | TDB - 120 | TDB - 150 | TDB - 200 | TDB - 300 | TDB - 400 |
| OPERATING PARAMETERS | ||||||||
| Rating | K.cals / hr | 30000 | 60000 | 120000 | 150000 | 200000 | 300000 | 400000 |
| Max. Outlet Temp. | °C | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Air Output | m³/hr | 1100 | 2200 | 4400 | 12000 | 7300 | 11000 | 14650 |
| Type of Fuel | LIGHT FUELSLIKE LDO / HSD / KEROSENE | |||||||
| Fuel Oil Consumption | Kgs / hr | 3.5 | 7.0 | 14.0 | 17.5 | 24 | 36.0 | 48.0 |
| Burner Control | ON / OFF | |||||||
| Capacity in terms of Trolleys | Nos | 4 | 6 | 12 | 16 | - | - | - |
| Efficiency | % | 84 ± 2% | ||||||
| Electric Supply | A.C.3 PHASE : 415V ± 6% 50 Hz 4 WIRE | |||||||
| Connected Electrical Load | H.P. | |||||||
| Air Circulating Blower | 3.0 | 5.0 | 7.5 | 10 | 10 | 12.5 | 15 | |
| Combn. Blower | 1.0 | 1.0 | 1.5 | 2 | 1.5 | 2.0 | 3.0 | |
| Oil Pump | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Total Electric Load | 4.5 | 6.5 | 9.5 | 12.5 | 12 | 15.0 | 18.5 | |
| Flue Gas Outlet | mm | 150 | 150 | 200 | 300 | 250 | 300 | 300 |
