Salient Features :
- ❱ Fully automatic instant steaming.
- ❱ Easy operation fail proof system.
- ❱ Record efficiency.
- ❱ Packaged models in unitised design.
REVOTECH is the latest design in coil type Non - IBR boilers. incorporating unique revolutionary principle of combustion known as " Reverse Flow " which increases combustion efficiency & allows high rate of heat flux & increases the efficiency of whole system. The boiler is also provided with an atmospheric economizer to preheat the incoming feed water to boiler.
As REVOTECH is a fully automatic boiler there is no need of specially trained boiler attendant during operation.
NON 1BR : The volumetric holding of the steam generating coil is less than 25 litres, by virtue of which the boiler is exempted from Indian Boiler Regulations.
Forced circulation, water tube & Reverse flow design enables the boiler to produce steam at full working within 3 to 5 minutes from cold start.
From safety point of view , REVOTECH is fully safe as it is having all safety precautions. REVOTECH is available in a wide range of steam generating capacities from 50 Kgs/hr to 1000 Kgs/hr F & A 100°C designed for maximum pressure of 15 Kg/cm2 at overall efficiency of 88± 2% on N . C . V.

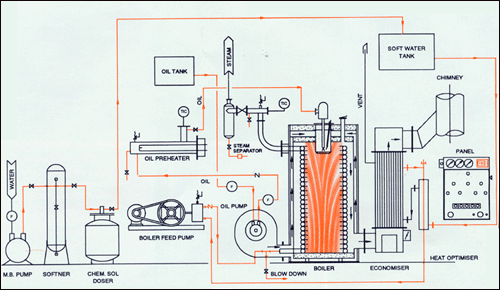

P & I Diagram Of An Oil Fired Steam Boiler - Revotech :
Technical Specifications :
| Details | Unit | RT-03 | RT-04 | RT-05 | RT-06 | RT-08 | RT-10 |
| OPERATING PARAMETERS | |||||||
| Steam output F & A 100oC. | Kgs/hr | 300 | 400 | 500 | 600 | 800 | 1000 |
| Steam pressure | Kgs/cm2 | 15 | 15 | 15 | 15 | 15 | 15 |
| Fuel Oil Consumption LDO FO |
Kgs/hr Kgs/hr |
18 19.1 |
24 25.4 |
30 31.8 |
36 38.1 |
48 50.8 |
60 63.6 |
| Efficiency (NCV) | % | -------------> | 88 + 2 | <------------------------- | |||
| Start up | Minutes | 3 | 3 | 5 | 5 | 5 | 5 |
| Burner control | ----------------------> | ON/OFF | <--------------------------------- | ||||
| Pressure parts | OUTSIDE THE PURVIEW OF INDIAN BOILER REGULATIONS | ||||||
| Electric Supply | AC - 3 - PHASE : 415 V - 6% ; 50 Hz = 3%; 4 wire | ||||||
| Connected Electrical Load | |||||||
| Feed water pump water | HP | 1 | 1 | 1 | 1 | 1.5 | 1.5 |
| Blower | HP | 1 | 1 | 1.5 | 1.5 | 3 | 5 |
| Fuel Pump Motor | HP | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| (For
F O fired units only) Total electrical load for : LDO Fired Units FO Fired Units |
KW | 3 2.5 HP 2.5 HP+3KW |
4.5 2.5 HP 2.5 |
6 3 HP 3 |
6 3 HP 3HP + 6 |
7.5 5 HP 5 |
7.5 7 HP + 7.5 KW |
| HP+4.5 KW | HP+6 KW | KW | HP+7.5 KW | ||||
| Flue Gas outlet | mm | 200 | 200 | 200 | 250 | 300 | 300 |
| Dry Weight (approx.) | Kgs | 1300 | 1400 | 1600 | 1700 | 1800 | 1950 |
